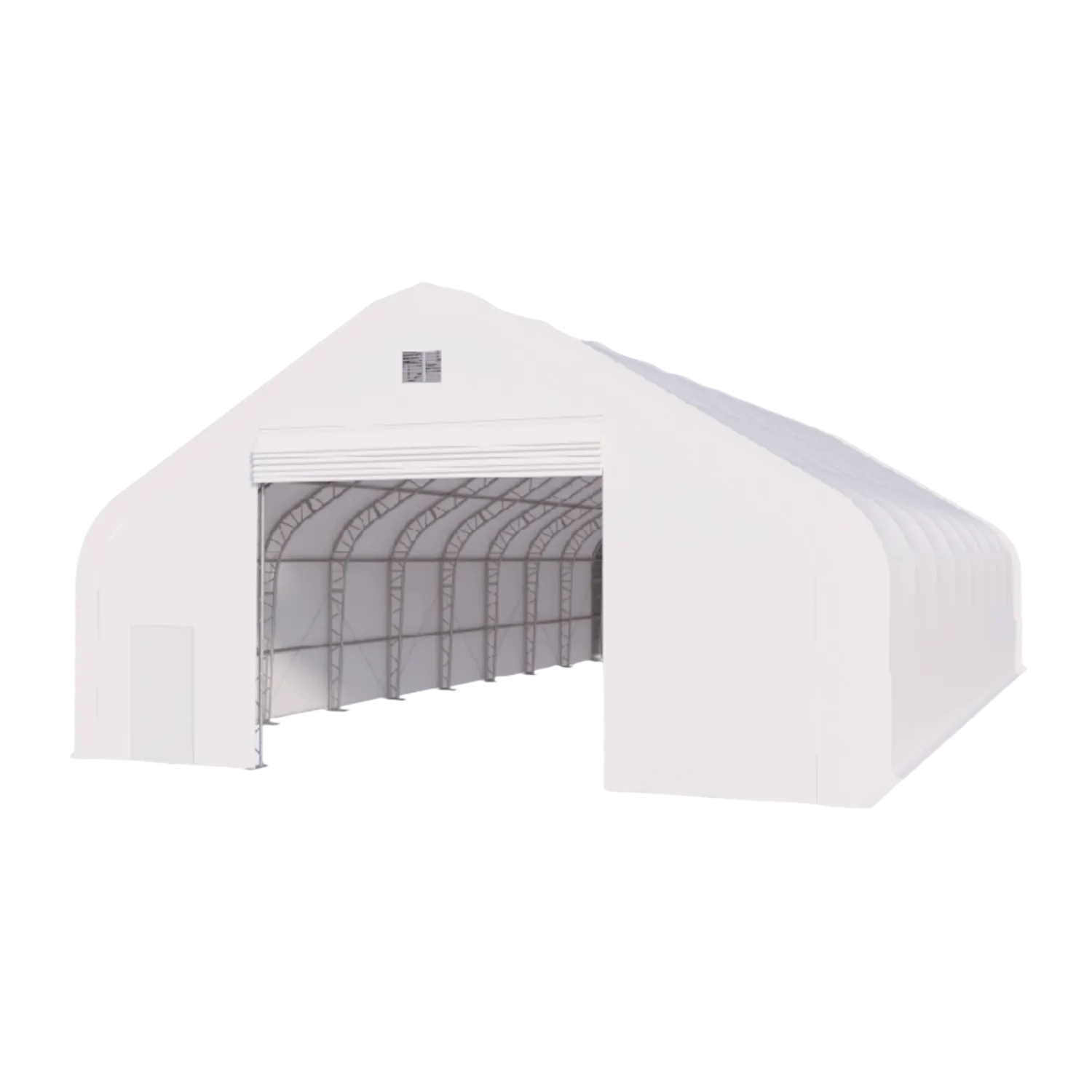

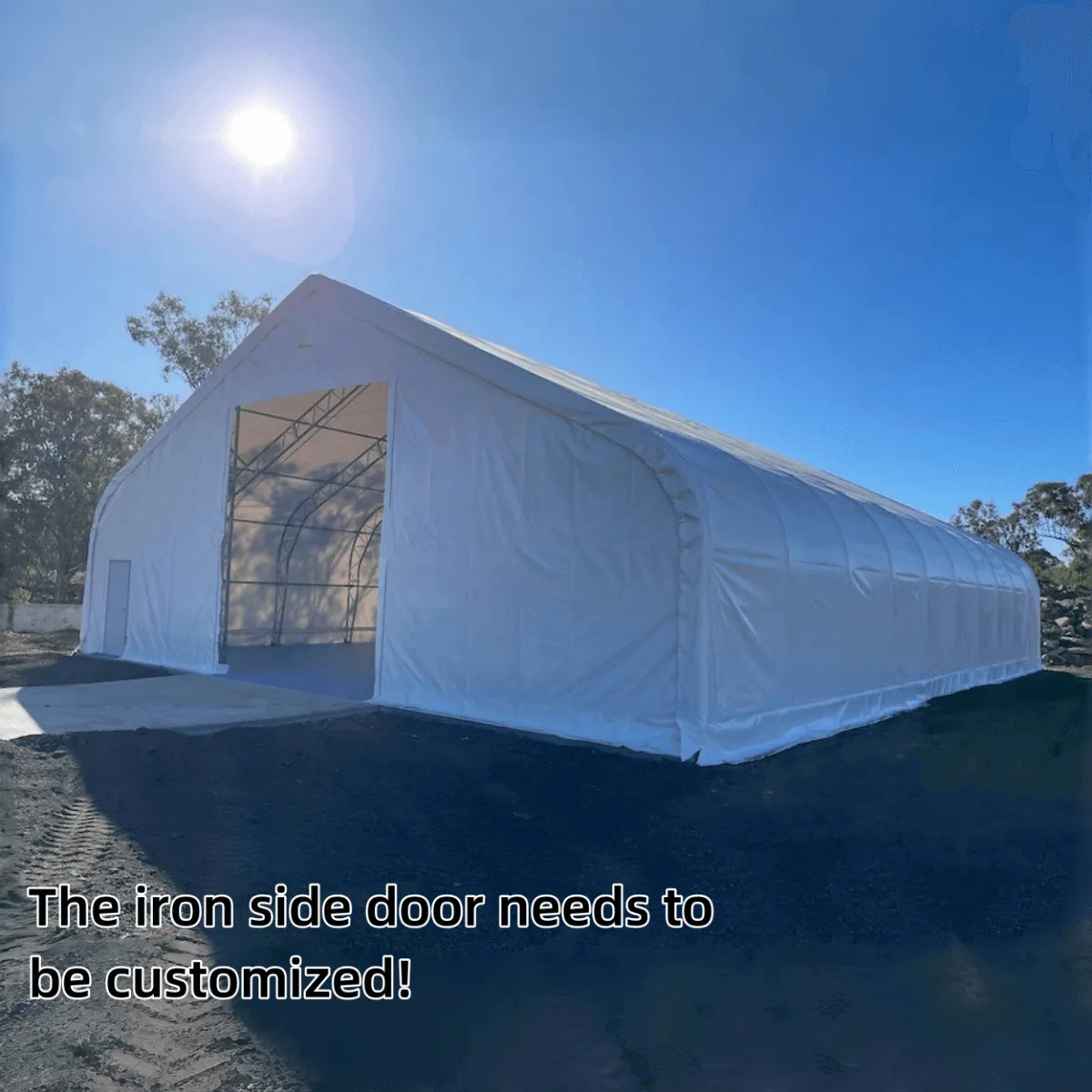

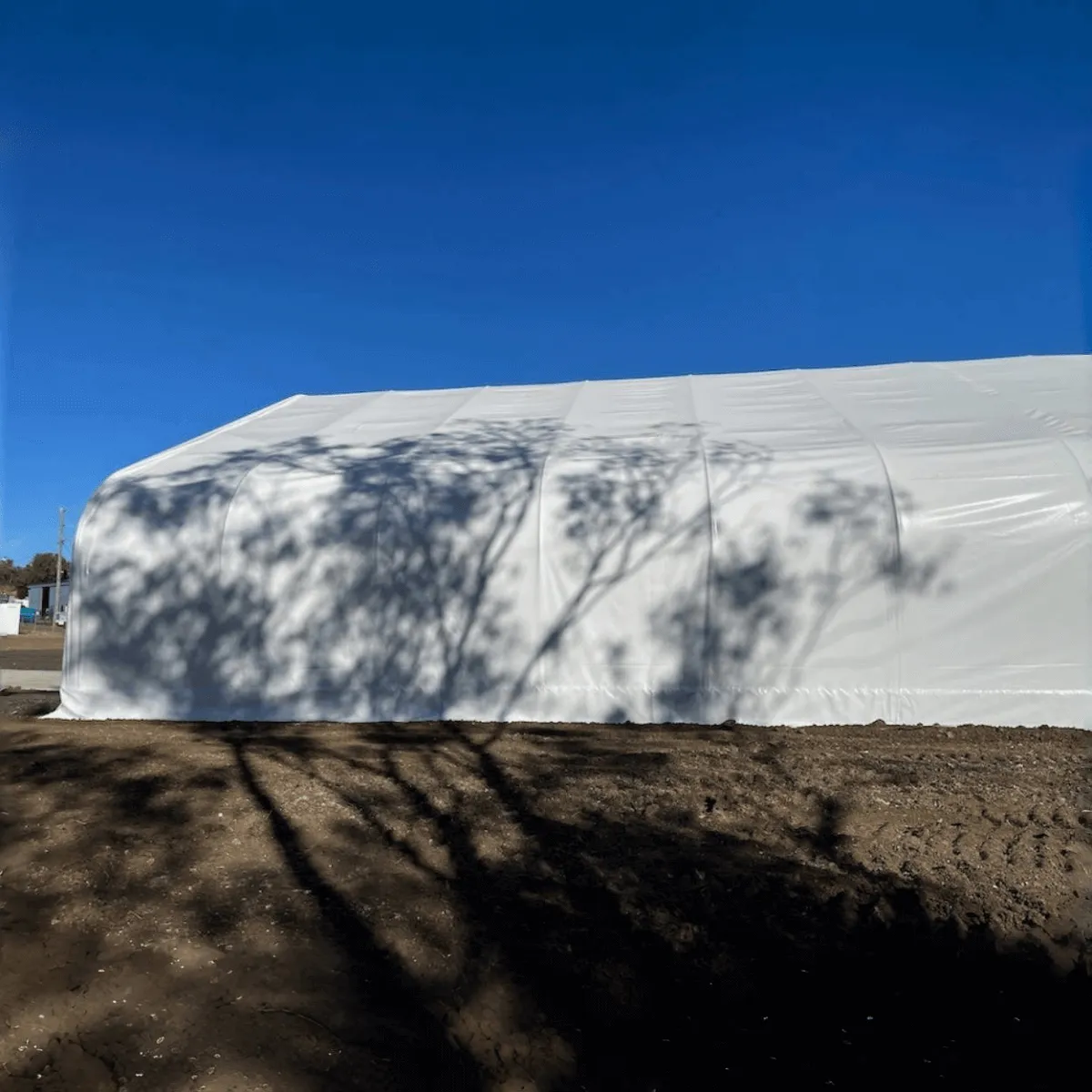

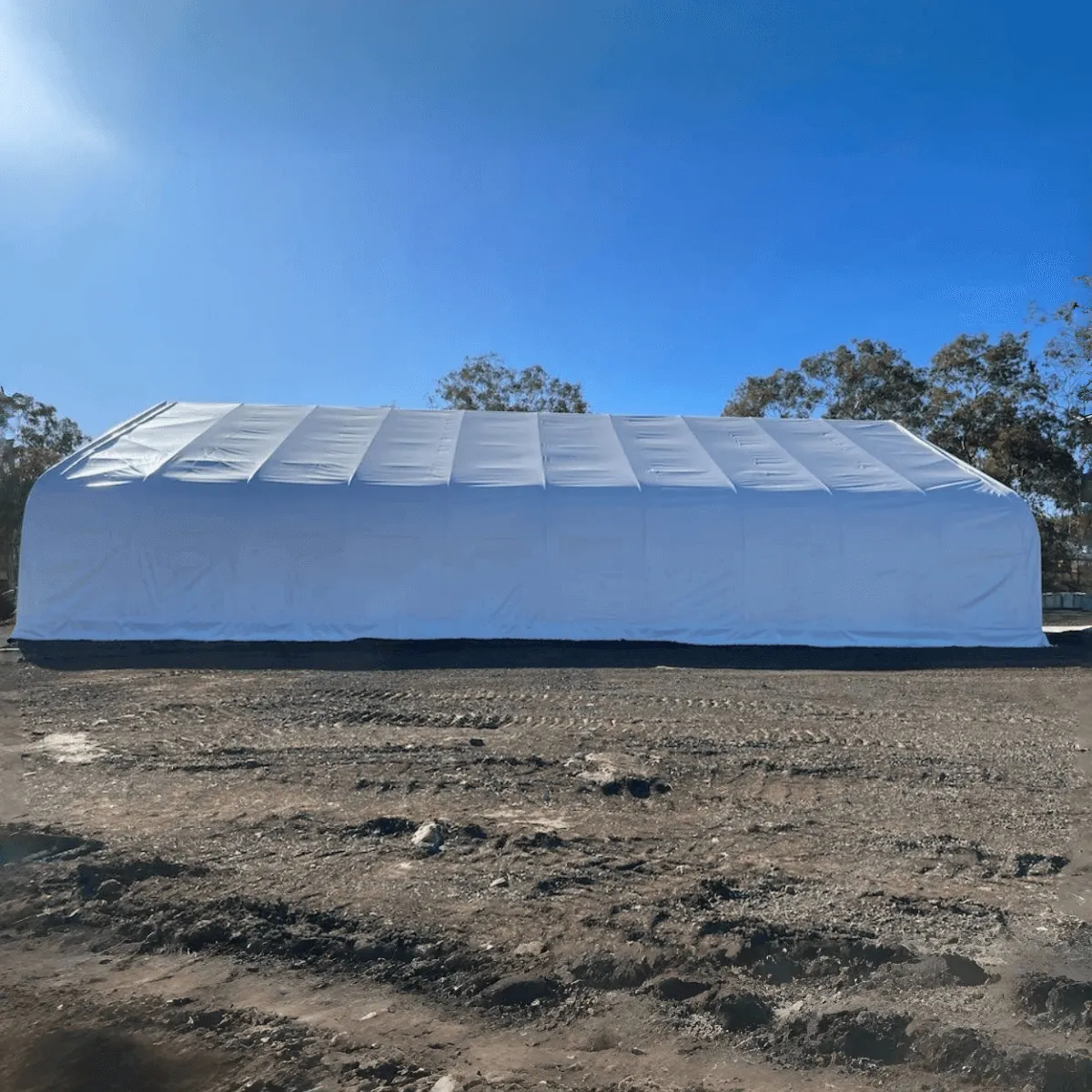

Meet the Gold Mountain Double Truss Storage Shelter, a robust W50'xL80'xH23' solution for your storage needs. Its double truss design ensures superior stability against harsh elements, ideal for commercial or industrial use. The heavy-duty, weather-resistant PVC fabric offers longevity and reliable protection. With a 23-foot height, it easily accommodates large items. Perfect for storing equipment, machinery, or inventory, this shelter provides a reliable shield against nature's forces, with a peak design that aids in snow removal.
Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specification
| Description |
Specifications |

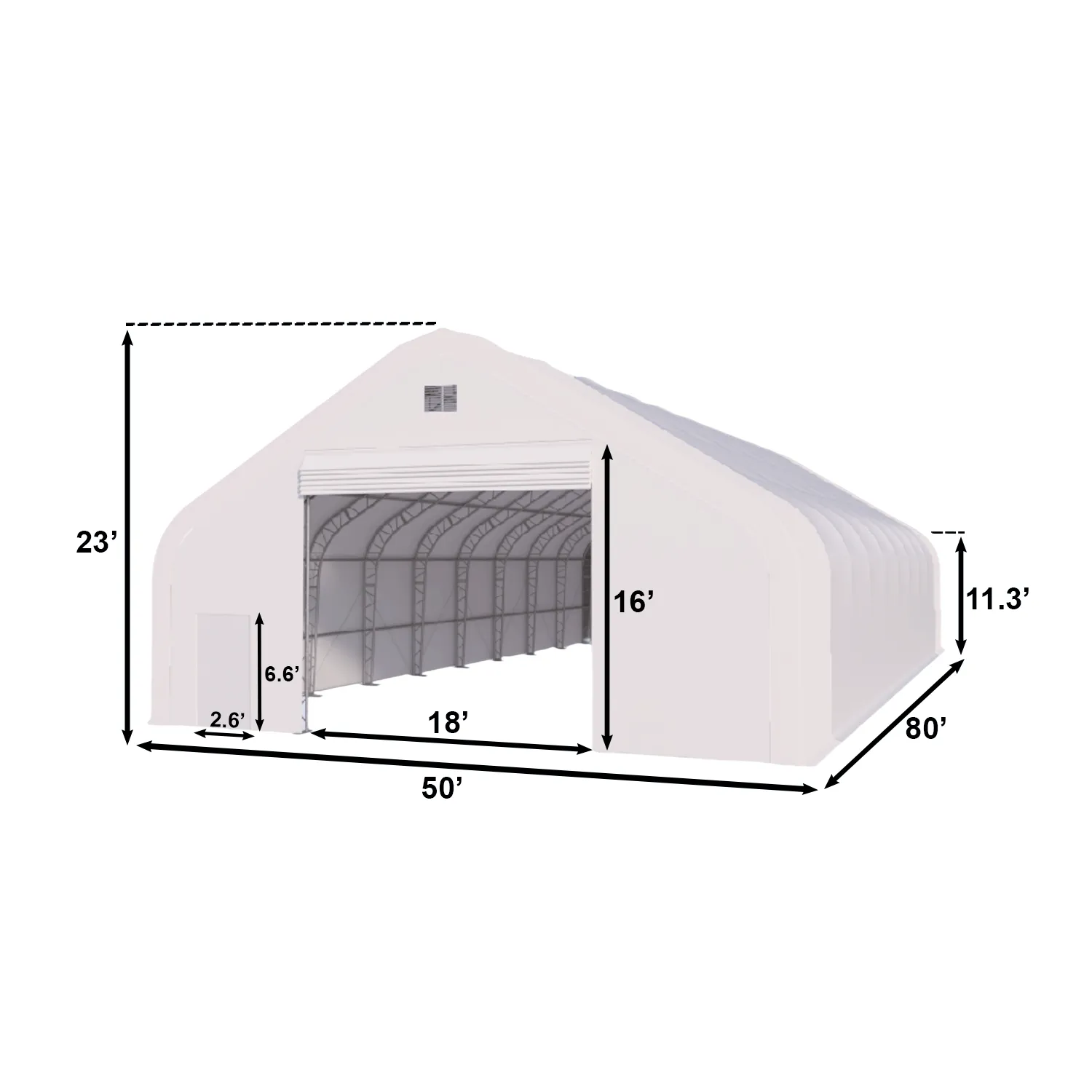

| Dimensions (WxLxH) | 50'x80'x23' |
| Side-wall Height | 11.3 ft |

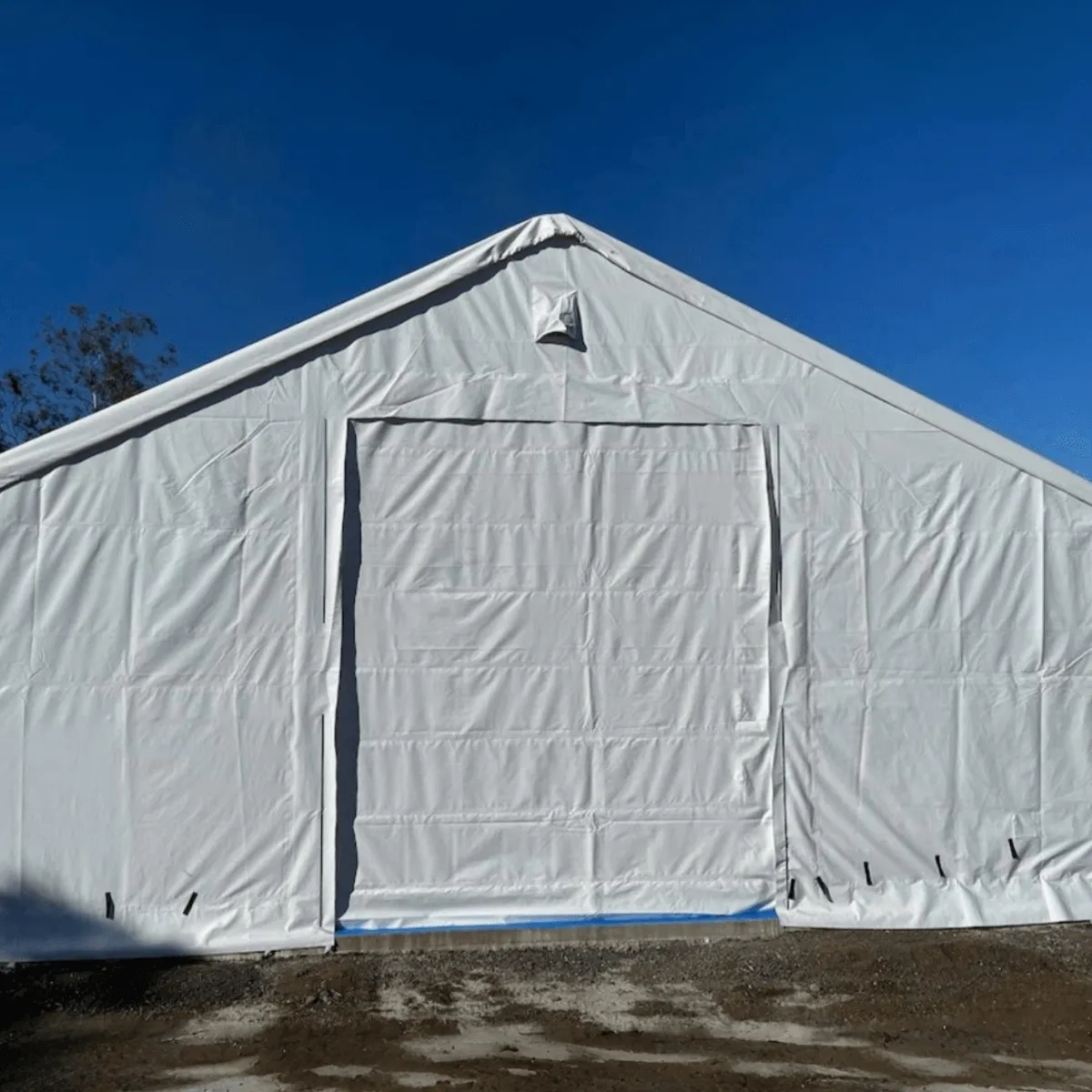

| Door size (WxH) (Front & Rear) | 18'x16' |
| Door Type | Mechanical Rollup Door |
| Man Door (WxH) | 2.6'x6.6' |

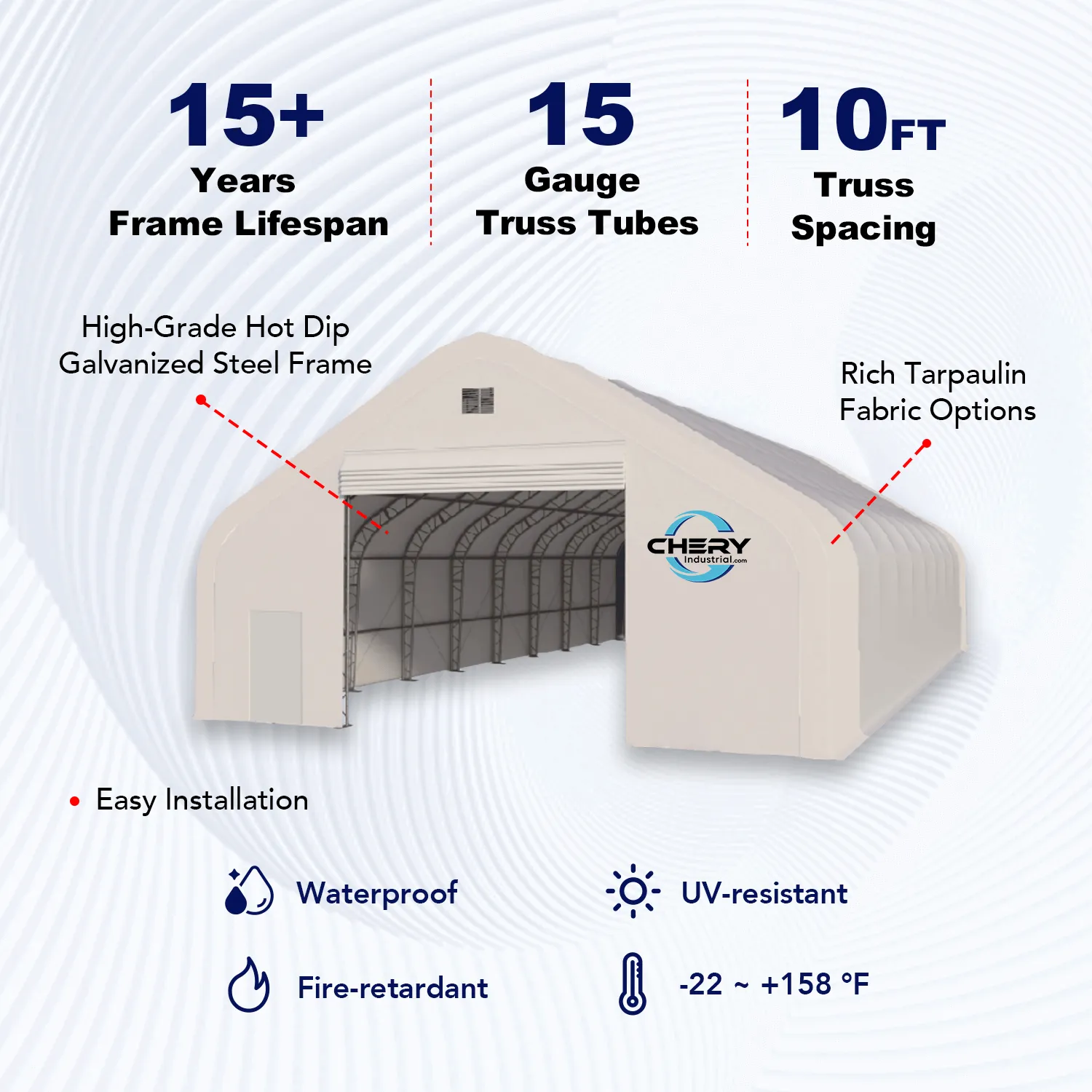

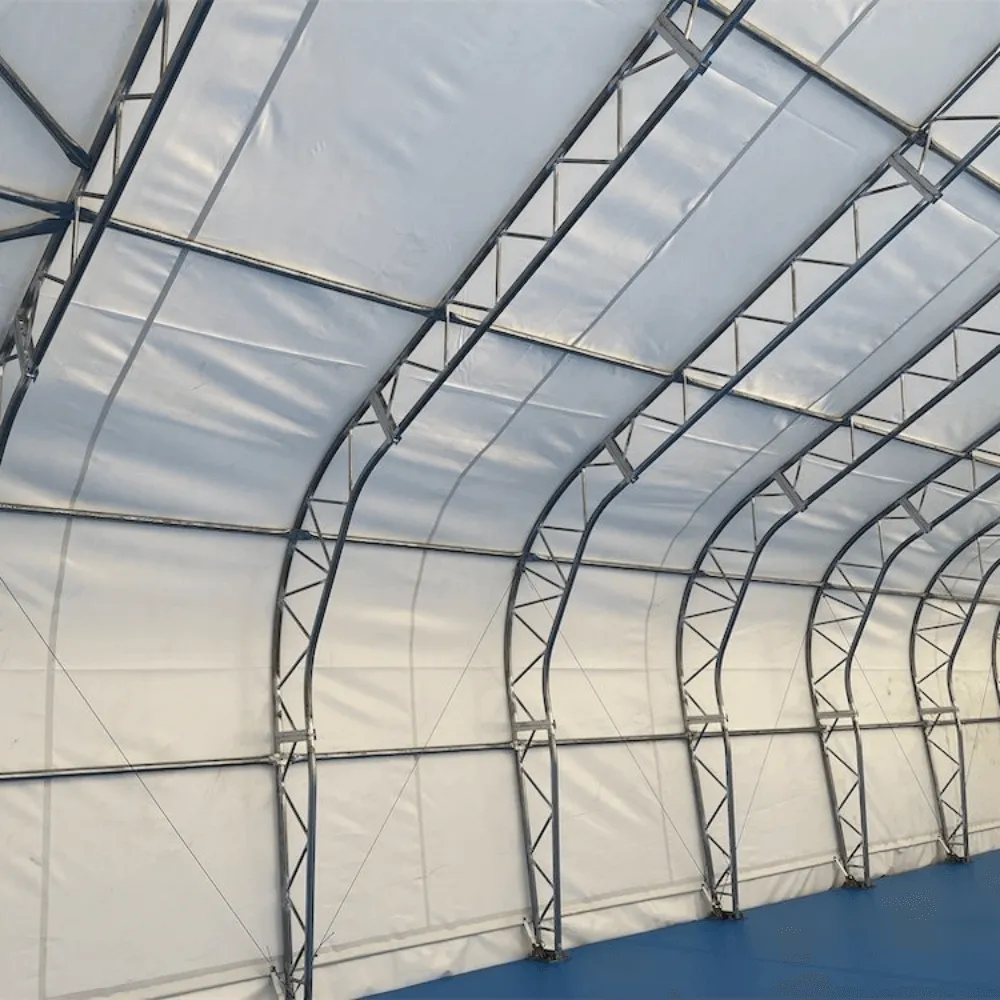

| Frame | Double Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 15 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 - 158 °F |
| Arch Ø | Φ 60x1.8mm |
| Purlin Ø | Φ 60x1.5mm |
| Arch Spacing | 10 ft |
| Number of Arch | 9 |

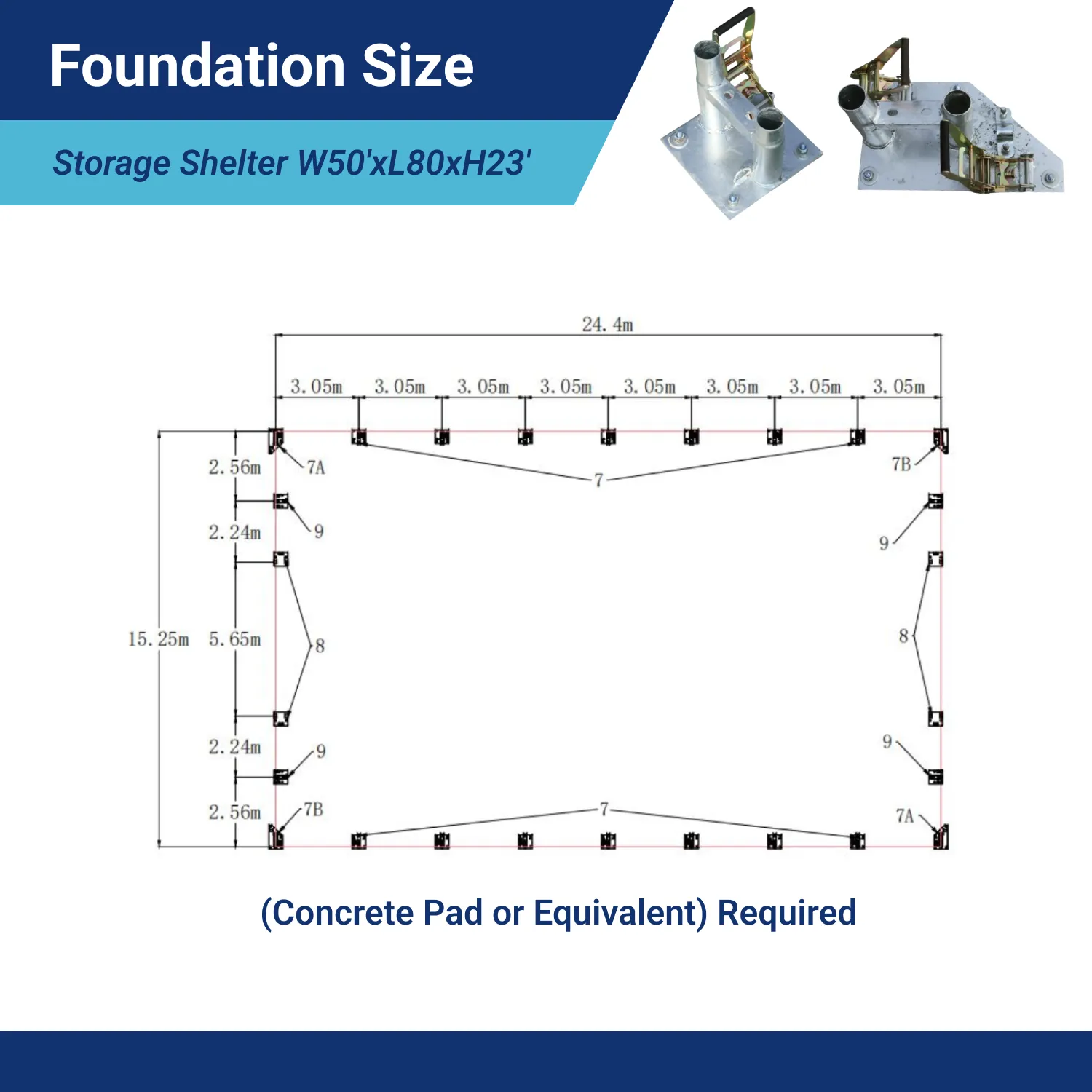

| Number of Anchor plates | 18 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 5 Days |

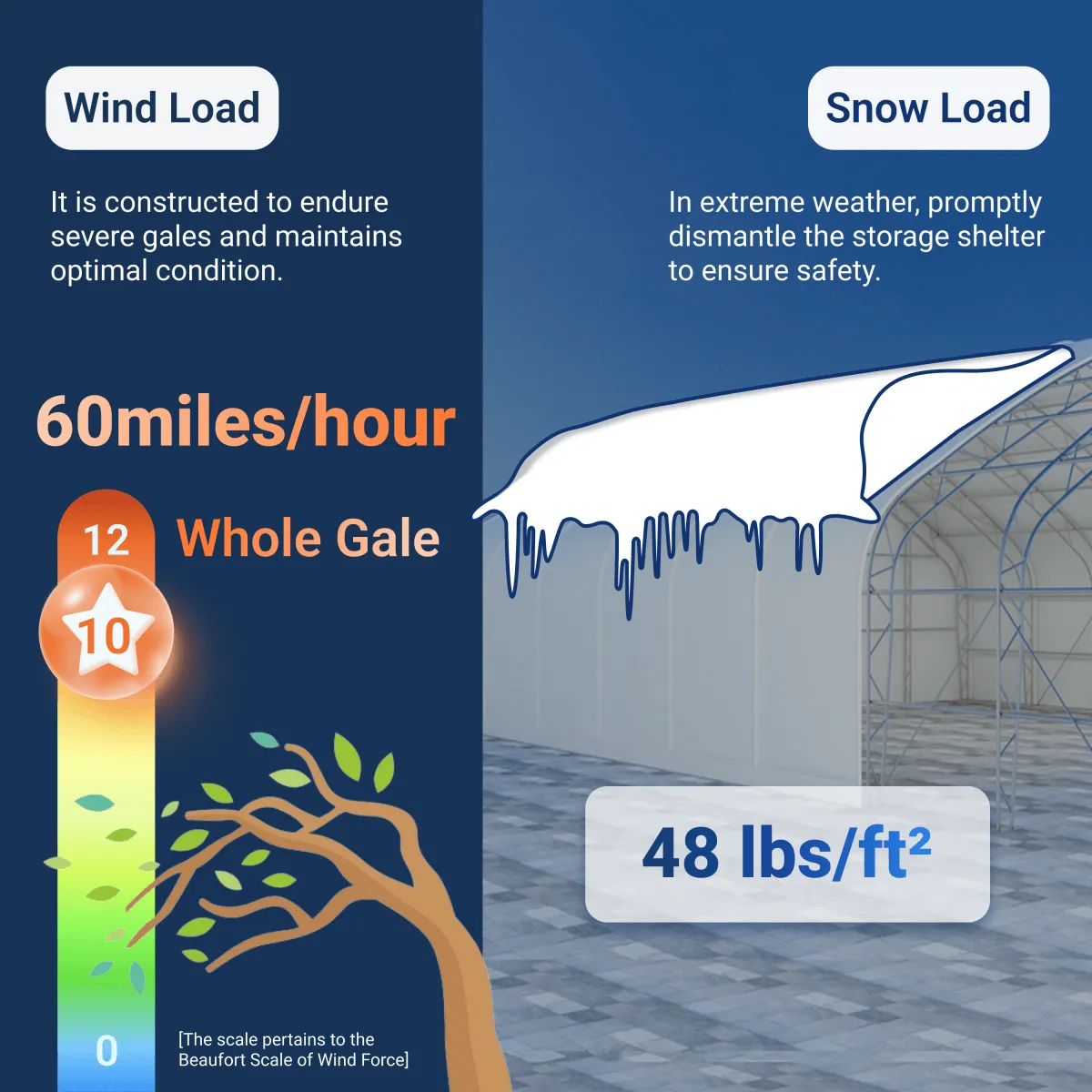

| Snow Load | 48 lbs/ft² |
| Wind Load | 60 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15 Years |
|
Warranty |
- PE: 2 Years Warranty. - PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Features
- No building permits required*.
- Provides unlimited storage space with 50’ wide, 80’ long, and 23’ high.
- Suitable for different purposes, from residential to commercial.
- The galvanized steel structure is built to last, which is resistant to rusting and corrosion.
- Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
- No need to use electricity during the day with the PVC cover providing enough natural light.
- Easy entry and exit with double doors, which are placed at both ends.
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
